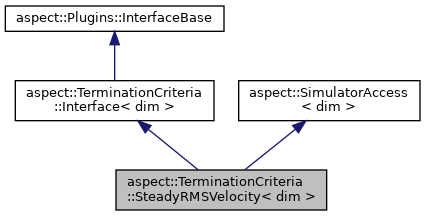

Inheritance diagram for aspect::TerminationCriteria::SteadyRMSVelocity< dim >:

[legend]

Public Member Functions
bool	execute () override

void	parse_parameters (ParameterHandler &prm) override

void	save (std::map< std::string, std::string > &status_strings) const override

void	load (const std::map< std::string, std::string > &status_strings) override

Public Member Functions inherited from aspect::TerminationCriteria::Interface< dim >
virtual double	check_for_last_time_step (const double time_step) const

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	initialize ()

virtual void	update ()

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

unsigned int	get_checkpoint_id () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free ()

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

const PrescribedSolution::Manager< dim > &	get_prescribed_solution () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Private Attributes
double	time_length

double	relative_deviation

std::list< std::pair< double, double > >	time_rmsvel

Detailed Description

template<int dim>
class aspect::TerminationCriteria::SteadyRMSVelocity< dim >

A class that implements a termination criterion based on steady state of the root mean square of the velocity field.

Definition at line 40 of file steady_rms_velocity.h.

Member Function Documentation

◆ execute()

template<int dim>

bool aspect::TerminationCriteria::SteadyRMSVelocity< dim >::execute ( )

overridevirtual

Evaluate this termination criterion.

Returns: Whether to terminate the simulation (true) or continue (false).

Implements aspect::TerminationCriteria::Interface< dim >.

◆ declare_parameters()

template<int dim>

static void aspect::TerminationCriteria::SteadyRMSVelocity< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare the parameters this class takes through input files.

◆ parse_parameters()

template<int dim>

void aspect::TerminationCriteria::SteadyRMSVelocity< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Read the parameters this class declares from the parameter file.

Reimplemented from aspect::Plugins::InterfaceBase.

◆ save()

template<int dim>

void aspect::TerminationCriteria::SteadyRMSVelocity< dim >::save ( std::map< std::string, std::string > & status_strings ) const

overridevirtual

Save the state of this object to the argument given to this function. This function is in support of checkpoint/restart functionality.

Derived classes can implement this function and should store their state in a string that is deposited under a key in the map through which the respective class can later find the status again when the program is restarted. A legitimate key to store data under is typeid(*this).name(). It is up to derived classes to decide how they want to encode their state.

The default implementation of this function does nothing, i.e., it represents a stateless object for which nothing needs to be stored at checkpoint time and nothing needs to be restored at restart time.

Parameters

[in,out] status_strings The object into which implementations in derived classes can place their status under a key that they can use to retrieve the data.

Reimplemented from aspect::Plugins::InterfaceBase.

◆ load()

template<int dim>

void aspect::TerminationCriteria::SteadyRMSVelocity< dim >::load ( const std::map< std::string, std::string > & status_strings )

overridevirtual

Restore the state of the object by looking up a description of the state in the passed argument under the same key under which it was previously stored.

The default implementation does nothing.

Parameters

[in] status_strings The object from which the status will be restored by looking up the value for a key specific to this derived class.

Reimplemented from aspect::Plugins::InterfaceBase.

Member Data Documentation

◆ time_length

template<int dim>

double aspect::TerminationCriteria::SteadyRMSVelocity< dim >::time_length

private

This variable is read from the parameter file through a parameter called 'Time in steady state'.

Definition at line 76 of file steady_rms_velocity.h.

◆ relative_deviation

template<int dim>

double aspect::TerminationCriteria::SteadyRMSVelocity< dim >::relative_deviation

private

This variable is read from the parameter file through a parameter called 'Maximum relative deviation'.

Definition at line 82 of file steady_rms_velocity.h.

◆ time_rmsvel

template<int dim>

std::list<std::pair<double, double> > aspect::TerminationCriteria::SteadyRMSVelocity< dim >::time_rmsvel

private

A list of pairs (time, rms_velocity) that we have computed at previous time steps. This is used to determine when we have reached steady state.

Definition at line 89 of file steady_rms_velocity.h.

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/aspect-documentation/checkouts/latest/include/aspect/termination_criteria/steady_rms_velocity.h
