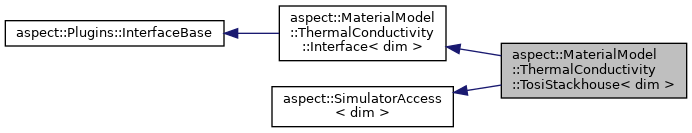

Inheritance diagram for aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >:

[legend]

Public Member Functions
void	evaluate (const MaterialModel::MaterialModelInputs< dim > &in, MaterialModel::MaterialModelOutputs< dim > &out) const override

void	parse_parameters (ParameterHandler &prm) override

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	initialize ()

virtual void	update ()

virtual void	save (std::map< std::string, std::string > &status_strings) const

virtual void	load (const std::map< std::string, std::string > &status_strings)

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

unsigned int	get_checkpoint_id () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free ()

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

const PrescribedSolution::Manager< dim > &	get_prescribed_solution () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Private Attributes
std::vector< double >	conductivity_transition_depths

std::vector< double >	reference_thermal_conductivities

std::vector< double >	conductivity_pressure_dependencies

std::vector< double >	conductivity_reference_temperatures

std::vector< double >	conductivity_exponents

std::vector< double >	saturation_scaling

double	maximum_conductivity

Detailed Description

template<int dim>
class aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >

A class that implements a pressure- and temperature-dependent thermal conductivity following the formulation of

Nicola Tosi, David A. Yuen, Nico de Koker, Renata M. Wentzcovitch, Mantle dynamics with pressure- and temperature-dependent thermal expansivity and conductivity, Physics of the Earth and Planetary Interiors, Volume 217, 2013, Pages 48-58, ISSN 0031-9201, https://doi.org/10.1016/j.pepi.2013.02.004,

and

Stephen Stackhouse, Lars Stixrude, Bijaya B. Karki, First-principles calculations of the lattice thermal conductivity of the lower mantle, Earth and Planetary Science Letters, Volume 427, 2015, Pages 11-17, ISSN 0012-821X, https://doi.org/10.1016/j.epsl.2015.06.050.

The thermal conductivity parameter sets can be chosen in such a way that either the Stackhouse or the Tosi relations are used. The conductivity description can consist of several layers with different sets of parameters. Note that the Stackhouse parametrization is only valid for the lower mantle (bridgmanite).

The default parameters of this class use the Tosi parametrization in the upper mantle and the Stackhouse parametrization in the lower mantle, which is how it was used in the publication

Juliane Dannberg, Rene Gassmöller, Daniele Thallner, Frederick LaCombe, Courtney Sprain, Changes in core–mantle boundary heat flux patterns throughout the supercontinent cycle, Geophysical Journal International, Volume 237, Issue 3, June 2024, Pages 1251–1274, https://doi.org/10.1093/gji/ggae075,

which introduced this implementation.

Definition at line 70 of file tosi_stackhouse.h.

Member Function Documentation

◆ evaluate()

template<int dim>

void aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::evaluate	(	const MaterialModel::MaterialModelInputs< dim > &	in,
		MaterialModel::MaterialModelOutputs< dim > &	out
	)		const

overridevirtual

Function to compute the thermal conductivities in out given the inputs in in.

Implements aspect::MaterialModel::ThermalConductivity::Interface< dim >.

◆ declare_parameters()

template<int dim>

static void aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare the parameters this plugin takes through input files.

◆ parse_parameters()

template<int dim>

void aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Read the parameters from the parameter file.

Reimplemented from aspect::Plugins::InterfaceBase.

Member Data Documentation

◆ conductivity_transition_depths

template<int dim>

std::vector<double> aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::conductivity_transition_depths

private

Parameters for the temperature and pressure dependence of the thermal conductivity.

This variable is read from the parameter file through a parameter called 'Thermal conductivity transition depths'.

Definition at line 100 of file tosi_stackhouse.h.

◆ reference_thermal_conductivities

template<int dim>

std::vector<double> aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::reference_thermal_conductivities

private

This variable is read from the parameter file through a parameter called 'Reference thermal conductivities'.

Definition at line 104 of file tosi_stackhouse.h.

◆ conductivity_pressure_dependencies

template<int dim>

std::vector<double> aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::conductivity_pressure_dependencies

private

This variable is read from the parameter file through a parameter called 'Pressure dependencies of thermal conductivity'.

Definition at line 108 of file tosi_stackhouse.h.

◆ conductivity_reference_temperatures

template<int dim>

std::vector<double> aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::conductivity_reference_temperatures

private

This variable is read from the parameter file through a parameter called 'Reference temperatures for thermal conductivity'.

Definition at line 112 of file tosi_stackhouse.h.

◆ conductivity_exponents

template<int dim>

std::vector<double> aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::conductivity_exponents

private

This variable is read from the parameter file through a parameter called 'Thermal conductivity exponents'.

Definition at line 116 of file tosi_stackhouse.h.

◆ saturation_scaling

template<int dim>

std::vector<double> aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::saturation_scaling

private

This variable is read from the parameter file through a parameter called 'Saturation prefactors'.

Definition at line 120 of file tosi_stackhouse.h.

◆ maximum_conductivity

template<int dim>

double aspect::MaterialModel::ThermalConductivity::TosiStackhouse< dim >::maximum_conductivity

private

The maximum allowed thermal conductivity.

This variable is read from the parameter file through a parameter called 'Maximum thermal conductivity'.

Definition at line 127 of file tosi_stackhouse.h.

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/aspect-documentation/checkouts/latest/include/aspect/material_model/thermal_conductivity/tosi_stackhouse.h
