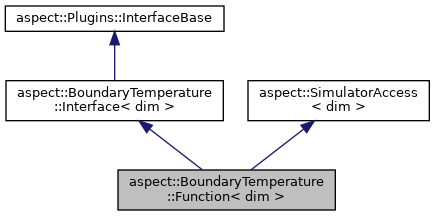

Inheritance diagram for aspect::BoundaryTemperature::Function< dim >:

[legend]

Public Member Functions
	Function ()

double	boundary_temperature (const types::boundary_id boundary_indicator, const Point< dim > &position) const override

void	update () override

double	minimal_temperature (const std::set< types::boundary_id > &fixed_boundary_ids) const override

double	maximal_temperature (const std::set< types::boundary_id > &fixed_boundary_ids) const override

void	parse_parameters (ParameterHandler &prm) override

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	initialize ()

virtual void	save (std::map< std::string, std::string > &status_strings) const

virtual void	load (const std::map< std::string, std::string > &status_strings)

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

unsigned int	get_checkpoint_id () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free ()

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

const PrescribedSolution::Manager< dim > &	get_prescribed_solution () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Private Attributes
Functions::ParsedFunction< dim >	boundary_temperature_function

double	min_temperature

double	max_temperature

Utilities::Coordinates::CoordinateSystem	coordinate_system

Detailed Description

template<int dim>
class aspect::BoundaryTemperature::Function< dim >

A class that implements boundary temperature based on a functional description provided in the input file.

Definition at line 42 of file function.h.

Constructor & Destructor Documentation

◆ Function()

template<int dim>

aspect::BoundaryTemperature::Function< dim >::Function ( )

Constructor.

Member Function Documentation

◆ boundary_temperature()

template<int dim>

double aspect::BoundaryTemperature::Function< dim >::boundary_temperature	(	const types::boundary_id	boundary_indicator,
		const Point< dim > &	position
	)		const

overridevirtual

Return the boundary temperature as a function of position and time.

Return the temperature that is to hold at a particular position on the boundary of the domain.

Parameters

boundary_indicator	The boundary indicator of the part of the boundary of the domain on which the point is located at which we are requesting the temperature.
position	The position of the point at which we ask for the temperature.

Returns: Boundary temperature at position position.

Implements aspect::BoundaryTemperature::Interface< dim >.

◆ update()

template<int dim>

void aspect::BoundaryTemperature::Function< dim >::update ( )

overridevirtual

A function that is called at the beginning of each time step to indicate what the model time is for which the boundary values will next be evaluated. For the current class, the function passes to the parsed function what the current time is.

Reimplemented from aspect::Plugins::InterfaceBase.

◆ minimal_temperature()

template<int dim>

double aspect::BoundaryTemperature::Function< dim >::minimal_temperature ( const std::set< types::boundary_id > & fixed_boundary_ids ) const

overridevirtual

Return the minimal temperature on that part of the boundary on which Dirichlet conditions are posed.

This value is used in computing dimensionless numbers such as the Nusselt number indicating heat flux.

Implements aspect::BoundaryTemperature::Interface< dim >.

◆ maximal_temperature()

template<int dim>

double aspect::BoundaryTemperature::Function< dim >::maximal_temperature ( const std::set< types::boundary_id > & fixed_boundary_ids ) const

overridevirtual

Return the maximal temperature on that part of the boundary on which Dirichlet conditions are posed.

This value is used in computing dimensionless numbers such as the Nusselt number indicating heat flux.

Implements aspect::BoundaryTemperature::Interface< dim >.

◆ declare_parameters()

template<int dim>

static void aspect::BoundaryTemperature::Function< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare the parameters this class takes through input files.

◆ parse_parameters()

template<int dim>

void aspect::BoundaryTemperature::Function< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Read the parameters this class declares from the parameter file.

Reimplemented from aspect::Plugins::InterfaceBase.

Member Data Documentation

◆ boundary_temperature_function

template<int dim>

Functions::ParsedFunction<dim> aspect::BoundaryTemperature::Function< dim >::boundary_temperature_function

private

A function object representing the temperature.

Definition at line 103 of file function.h.

◆ min_temperature

template<int dim>

double aspect::BoundaryTemperature::Function< dim >::min_temperature

private

Temperatures at the inner and outer boundaries.

This variable is read from the parameter file through a parameter called 'Minimal temperature'.

Definition at line 110 of file function.h.

◆ max_temperature

template<int dim>

double aspect::BoundaryTemperature::Function< dim >::max_temperature

private

Temperatures at the inner and outer boundaries. This variable is read from the parameter file through a parameter called 'Maximal temperature'.

Definition at line 116 of file function.h.

◆ coordinate_system

template<int dim>

Utilities::Coordinates::CoordinateSystem aspect::BoundaryTemperature::Function< dim >::coordinate_system

private

The coordinate representation to evaluate the function. Possible choices are depth, cartesian and spherical.

This variable is read from the parameter file through a parameter called 'Coordinate system'.

Definition at line 124 of file function.h.

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/aspect-documentation/checkouts/latest/include/aspect/boundary_temperature/function.h
