CPO induced anisotropic viscosity#
This section was contributed by Yijun Wang, Ágnes Király and Theo Häußler
This cookbook explains how to use the CPO-induced anisotropic viscosity material model to set up a shear box model.
Introduction#
Individual crystals of the mineral olivine reorganize their orientations into crystal-preferred orientations (CPO) under deformation. The viscous properties of olivine crystals are direction-dependent (anisotropic), which suggests that the effective viscosity for olivine rocks/aggregates is different when deformations occur in different directions relative to the CPO. This cookbook model computes an anisotropic viscosity based on the CPO evolution predicted by D-Rex ([Fraters and Billen, 2021]; [Kaminski et al., 2004]) and includes this information in the subsequent modeling process based on the formulation of Király at al., (in rev.).
Forward Rheology#
Note: In this cookbook, we use one index for vectors (e.g. \(\dot{\varepsilon}_{i}\) is a vector representing \(\dot{\varepsilon}_{ij}\) in Kelvin notation), and two indices for rank-2 tensors (e.g.\(\dot{\varepsilon}_{ij}\)). Other variables are scalars.
Our constitutive equation for the relationship between the strain rate and stress using the anisotropic viscosity tensor is adapted from Signorelli et al. [2021]. In Kelvin notation we can write:
where \(\gamma\) is the part of fluidity (the inverse of viscosity) which is temperature- and grain-size dependent:
\(\gamma_0=1.1\times 10^{5}\) is the isotropic fluidity, \(Q=530\) \(kJ/mol\) is the activation energy, \(R=8.314\) m\(^3 \cdot\) Pa \(\cdot\) K\(^{−1} \cdot\) mol\(^{−1}\) is the gas constant, \(d=0.001\) m is the grain size, and \(m=0.73\) is the grain size exponent. These values for olivine are taken from rock experiments performed by Hansen et al. [2016] and Hirth and Kohlstedt [2004]. \(J\) is the yield potential (scalar), which is computed with the anisotropic stress \(\sigma_{ij}\):
and \(A_{ij}\) is the anisotropic tensor of fluidity in Kelvin notation:
\(J(\sigma_{ij})\) and \(A_{ij}\) are computed using Hill coefficients \(H, J, K, L, M,\) and \(N\) [Hill, 1948], which describe the anisotropic viscous properties of an olivine aggregate and depend on its CPO. We determine the mean CPO orientation from the eigenvectors associated with the largest eigenvalues of the second-order orientation tensor (or covariance matrix) for all three symmetry axes. The corresponding eigenvalues quantify the dispersion of orientations around these mean orientation [Bingham, 1974]. The relationship between the 9 eigenvalues (3 for each axis) and Hill coefficients is derived using regression analysis on a texture database constructed with olivine textures from laboratory experiments, shear box models, and subduction models (Kiraly et al., in rev., the data used for this paper is published through Zenodo [Király et al., 2026]). The 9 coefficients and 1 constant for each of the Hill coefficients are given as input in the parameter file. The default values and the equation to compute the Hill coefficients from the eigenvalues (e.g. \(a_1, a_2, a_3\) are the eigenvalues of the orientation tensor for a-axis, where \(a_1\) is the largest eigen value) are shown below:
CPO Reference Frame#
Since the Hill coefficients are defined in the microscopic CPO reference frame, and parameters computed in ASPECT are in the macroscopic model reference frame, several reference frame conversions are needed. We determine the mean CPO orientation from the eigenvectors associated with the largest eigenvalues of the second-order orientation tensor (or covariance matrix) for all three symmetry axes. The corresponding eigenvalues quantify the dispersion of orientations around the mean orientation [Bingham, 1974].
First, we need to rotate \(\sigma_{ij}\) in (50) from the model reference frame to the CPO reference frame so that \(J(\sigma_{ij})\) is in the CPO reference frame. This is achieved by constructing a matrix from the eigenvectors corresponding with the largest eigenvalues of the covariance matrix for the a-, b-, and c-axis of olivine textures and then we assign the rotation matrix R:
As sometimes the 3 primary eigenvectors do not compose an othrogonal frame, a singular value decomposition is used to orthogonalize the rotation matrix \(R\). We compute the rotation matrix \(R\) on the particles and further convert it to Euler angles for computation and memory efficiency. These properties need to be interpolated from particles to fields to be used in the material model. As a result, the anisotropic viscosity material model requires at least one particle in each cell so that all cells can have the texture parameters (Euler angles and eigenvalues) for constructing the rotation matrix R and computing the Hill coefficients. In the material model, the interpolated Euler angles are converted to the rotation matrix again. We use the same notation R to describe the rotation matrix used in the material model in the following paragraphs.
At the current stage averages between angles are computed using scalar arithmetic average tools implemented in ASPECT. For more exact treatment we plan to implement a circular average or quaternion average based on [Markley et al., 2007].
The inverse of the A tensor then needs to be rotated to the model reference frame. Since \(A_{ij}^{-1}\) is the Kelvin notation of the rank-4 tensor, we apply the Kelvin notation representation of the R rotation matrix, \(R_K\), on \(A_{ij}^{-1}\):
Iterative Inversion#
In this material model plugin, strain rate, density, temperature, and other parameters are taken as input to compute the anisotropic viscosity, which is passed into the Stokes system to compute the stress. As a result, we write the inversion of the forward rheology in the CPO reference frame (48) to be:
To move from CPO frame to model frame we can write:
\(R'\) and \(R_K'\) is the transpose of matrix \(R\) and \(R_K\) respectively. We save \(\frac{1}{\gamma J(R'_{ik}\sigma_{kl}R_{lj})^{(n-1)/2}}\) as the material model viscosity output, which we call the scalar viscosity. The scalar viscosity of the current step is also stored into the prescribed field, so that at the beginning of the next step, the anisotropic stress is computed with the scalar viscosity of the previous step using (55). The tensorial part of anisotropic viscosity, \([R_K]_{ik}A_{kl}^{-1}[R_K']_{lj}\) is called the stress-strain director and is stored in the additional outputs. Because the scalar viscosity depends on stress and the stress is determined by the scalar viscosity from the previous time step, the computation of the scalar viscosity is potentially unstable and its value can oscillate across nonlinear iterations. This oscillation can ultimately cause a numerical instability associated with the prediction of the anisotropic viscosity. Therefore, we damp the scalar viscosity computation using a fixed-point iteration, by applying only half of the change in each iteration until the result converges.
Analytical inversion#
The inverse rheology of an orthotropic non-linear rheology can be derived from the symmetry of the strain-rate tensor [Rathmann and Lilien, 2022]. Writing the orthotropic rheology and its inversion in the CPO reference frame we can compare the Hill coefficients to the fluidity coefficients or enhancement factors of [Rathmann and Lilien, 2022]. The reformulated inverse rheology in terms of Hill coefficients in Kelvin notation then becomes:
with the anisotropic tensor for viscosity in Kelivin notation \(V_{ij}\) and the non-linear viscosity \(\eta(\dot{\varepsilon}_I)\), which is based on an anisotropic strain-rate invariant \(\dot{\varepsilon}_I\):
Here we use the convention \(H_1=F,H_2=G,H_3=H\), \(H_4=L,H_5=M,H_6=N\) and the shifted indices \(j=\{1,2,0\}\) and \(k=\{2,0,1\}\). \(\Gamma\) (\(\gamma\) in [Rathmann and Lilien, 2022]) is a short script for:
In the isotropic case (\(H_i=0.5\), \(H_{i+3}=1.5\)) we then have a flow law of the form,
where \({\varepsilon}^d_{ij}\) is the deviatoric strain-rate.
Model setup#
The usage of the AV material model is demonstrated with a 2d and 3d simple shear box model, where its dimension is \(1 \times 1 (\times 1)\) (non-dimensionalized). The shear strain rate is set to \(0.5\). The origin is the center of the box, and one particle representing 1000 olivine grains sits at the origin to track CPO developments for computation of anisotropic viscosity parameters.
Since the AV material model computes viscosity based on the evolving CPO stored on particles, several setup requirements must be met:
Particles per cell: Each computational cell must contain at least one particle, to allow interpolation of the CPO particle property. This is achieved by setting (in the Particles subsection):
set Minimum particles per cell = 1
set Load balancing strategy = add particles
CPO particle property: The CPO particle property must be stored for use by the AV model. This requires enabling the particle and crystal preferred orientation postprocessors and the relevant subsections for them, including the CPO Bingham Average plugin, which calculates the Hill coefficients. We set the mobility, nucleation efficiency, and threshold GBS values following Hansen et al. [2016], for grain boundary mobility, grain nucleation, and grain boundary sliding, respectively:
subsection Postprocess
set List of postprocessors = velocity statistics, composition statistics, memory statistics, visualization, particles, crystal preferred orientation
subsection Visualization
set Time between graphical output = 0.1
set List of output variables = material properties, strain rate, named additional outputs, shear stress, stress
subsection Material properties
set List of material properties = density, viscosity
end
end
subsection Particles
set Time between data output = 0.1
set Data output format = gnuplot, vtu
set Exclude output properties = rotation_matrix, volume fraction
end
subsection Crystal Preferred Orientation
set Time between data output = 0.1
set Write in background thread = true
set Compress cpo data files = false
set Write out raw cpo data = mineral 0: volume fraction, mineral 0: Euler angles
set Write out draw volume weighted cpo data = mineral 0: volume fraction, mineral 0: Euler angles
end
end
subsection Particles
set List of particle properties = integrated strain, integrated strain invariant, velocity, pT path, strain rate, crystal preferred orientation, cpo bingham average, cpo elastic tensor
set Allow cells without particles = false
set Interpolation scheme = nearest neighbor
set Particle generator name = ascii file
set Minimum particles per cell = 1
set Load balancing strategy = add particles
subsection Generator
subsection Ascii file
set Data directory = ./
set Data file name = particle_one.dat
end
end
subsection Crystal Preferred Orientation
subsection Initial grains
set Minerals = Olivine: A-fabric
set Volume fractions minerals = 1.0
end
set Number of grains per particle = 1000
set Property advection method = Backward Euler
set Property advection tolerance = 1e-15
set CPO derivatives algorithm = D-Rex 2004
subsection D-Rex 2004
set Mobility = 10
set Stress exponents = 3.5
set Exponents p = 1.5
set Threshold GBS = 0.3
end
end
subsection CPO Bingham Average
set Random number seed = 200
set Use rotation matrix = false
end
end
Note: These settings are similar to those used for simulations involving CPO alone. However, for the AV model, it is essential to set Use rotation matrix = false in the CPO Bingham Average subsection, so that the CPO is represented using Euler angles, as required.
Compositional fields: The eigenvalues and Euler angles of the CPO tensor are stored in compositional fields. This requires the following input file section:
subsection Initial composition model
set List of model names = function
subsection Function
set Function expression = 0;\
0; 1/3; 1/3; 1/3;\
0; 1/3; 1/3; 1/3;\
0; 1/3; 1/3; 1/3;\
0
end
end
subsection Compositional fields
set Number of fields = 14
set Names of fields = scalar_viscosity, \
phi1, eigvalue_a1, eigvalue_a2, eigvalue_a3,\
theta, eigvalue_b1, eigvalue_b2, eigvalue_b3,\
phi2, eigvalue_c1, eigvalue_c2, eigvalue_c3,\
water
set Compositional field methods = prescribed field, \
particles, particles, particles, particles, \
particles, particles, particles, particles, \
particles, particles, particles, particles, \
static
set Mapped particle properties = phi1:cpo mineral 0 phi1[0], eigvalue_a1:cpo mineral 0 eigenvalues a axis[0], eigvalue_a2:cpo mineral 0 eigenvalues a axis[1], eigvalue_a3:cpo mineral 0 eigenvalues a axis[2], \
theta:cpo mineral 0 theta[0], eigvalue_b1:cpo mineral 0 eigenvalues b axis[0], eigvalue_b2:cpo mineral 0 eigenvalues b axis[1], eigvalue_b3:cpo mineral 0 eigenvalues b axis[2], \
phi2:cpo mineral 0 phi2[0], eigvalue_c1:cpo mineral 0 eigenvalues c axis[0], eigvalue_c2:cpo mineral 0 eigenvalues c axis[1], eigvalue_c3:cpo mineral 0 eigenvalues c axis[2]
set Types of fields = generic, \
generic, generic, generic, generic, \
generic, generic, generic, generic, \
generic, generic, generic, generic, \
generic
end
In the CPO induced Anisotropic Viscosity material model subsection, all parameters have reasonable default values and do not need to be manually specified unless customization is needed. It is possible to define the grain size \(d\), the grain size exponent \(m\), the fluidity constant \(\gamma_0\), the activation energy \(Q\), the non-linear stress exponent \(n\) and if the analytical inversion or the iterative inversion should be used.
This shear box model uses an additional postprocessor, anisotropic stress, which is also implemented in this cookbook. It outputs a 3-by-3 matrix that can be visualized as a tensor, similar to the standard stress postprocessor. With the anisotropic viscosity material model, applying simple shear produces deformation in multiple directions. As a result, the anisotropic stress tensor appears as elongated and slightly tilted glyphs (indicating the principal stress directions), in contrast to the isotropic stress tensor (see figure below).
Fig. 185 Expected output of the shear box model using anisotropic viscosity material model, showing the anisotropic stress and stress postprocessor as tensor glyphs (blue disks) in Paraview. The arrows indicate the direction and magnitude of velocity.#
2d shear box#
For 2d applications a pseudo 3d strain-rate for texture development is constructed as,
Then texture development, CPO frame and an inversion are computed as before. The out of plane components of the anisotropic viscosity tensor are discarded.

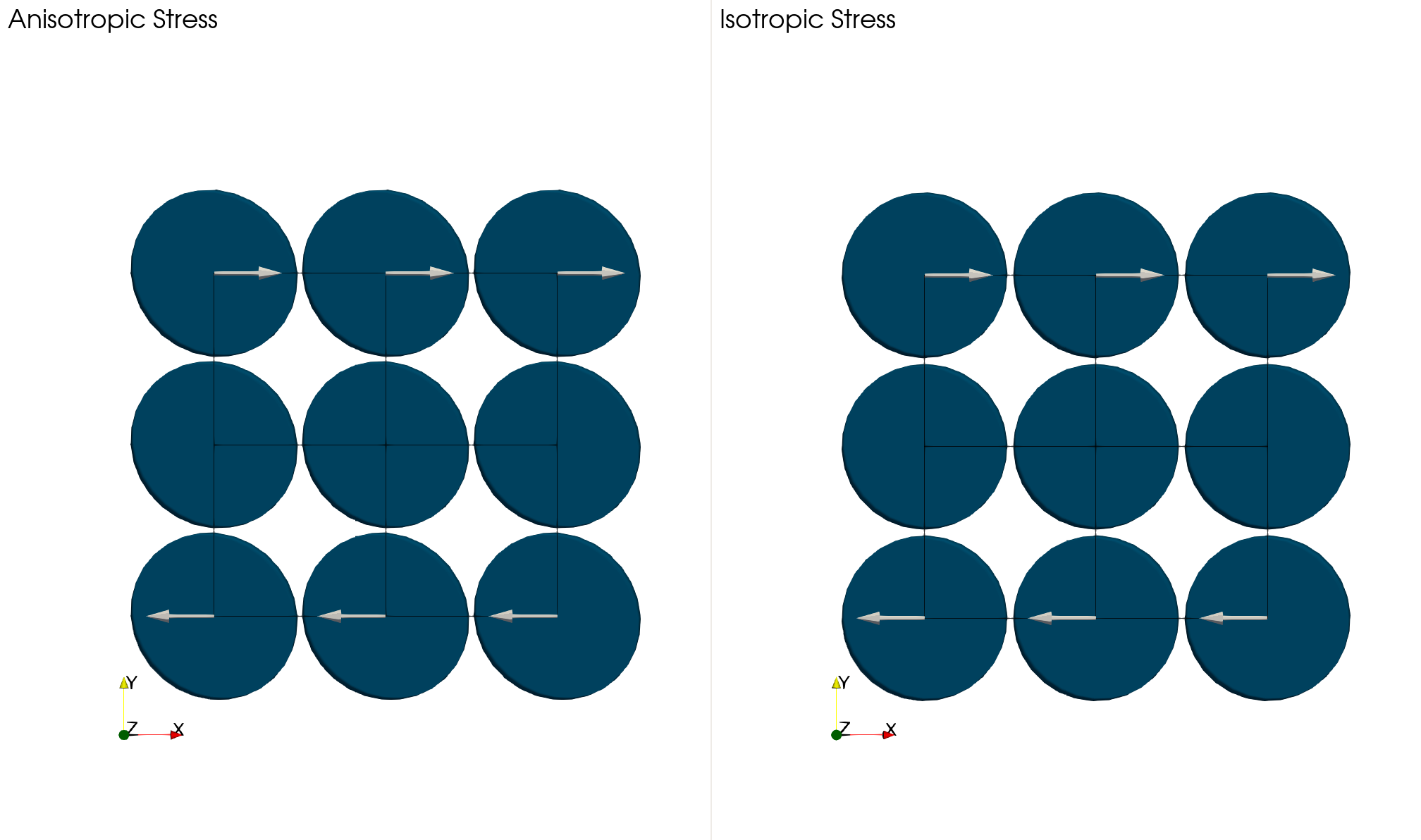

Fig. 186 Expected output of the shear box model using anisotropic viscosity material model, showing the anisotropic stress and stress postprocessor as tensor glyphs (blue disks) in Paraview. The arrows indicate the direction and magnitude of velocity.#
